KEOR MOD

Downloads

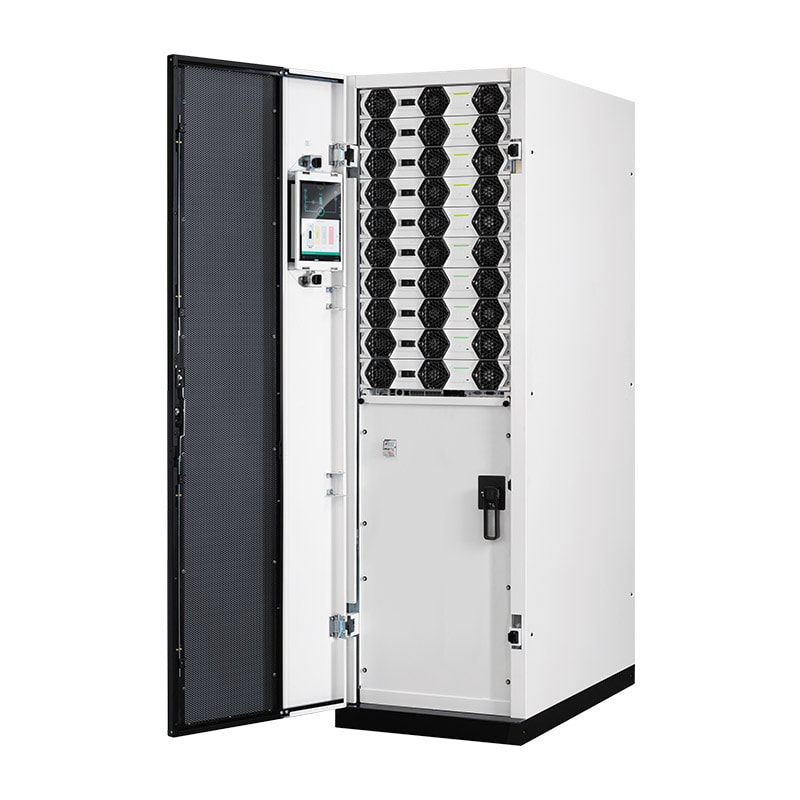

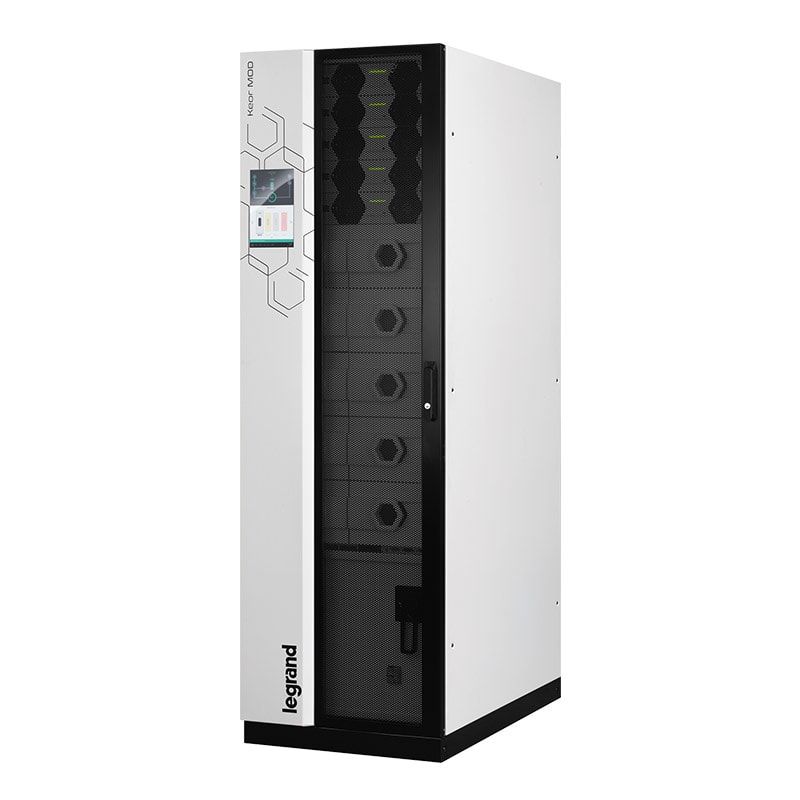

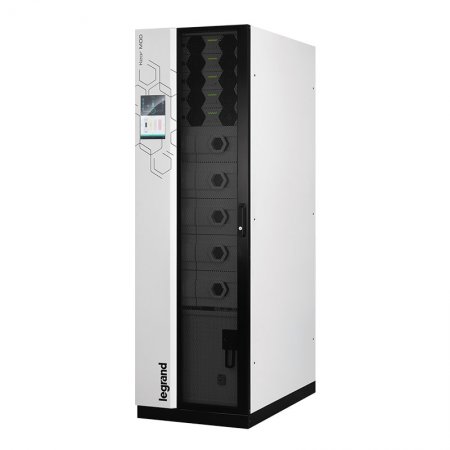

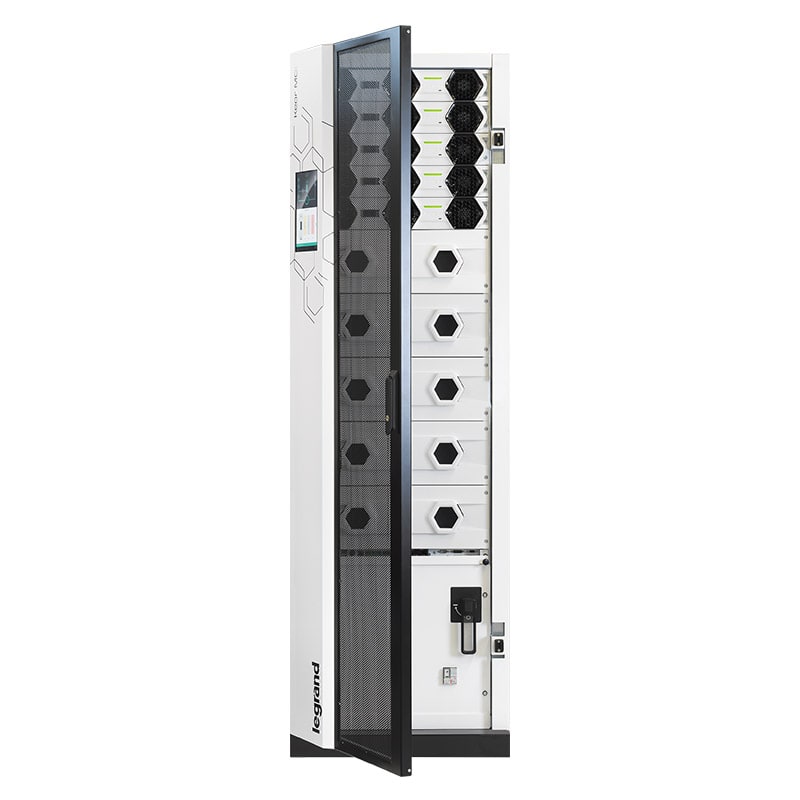

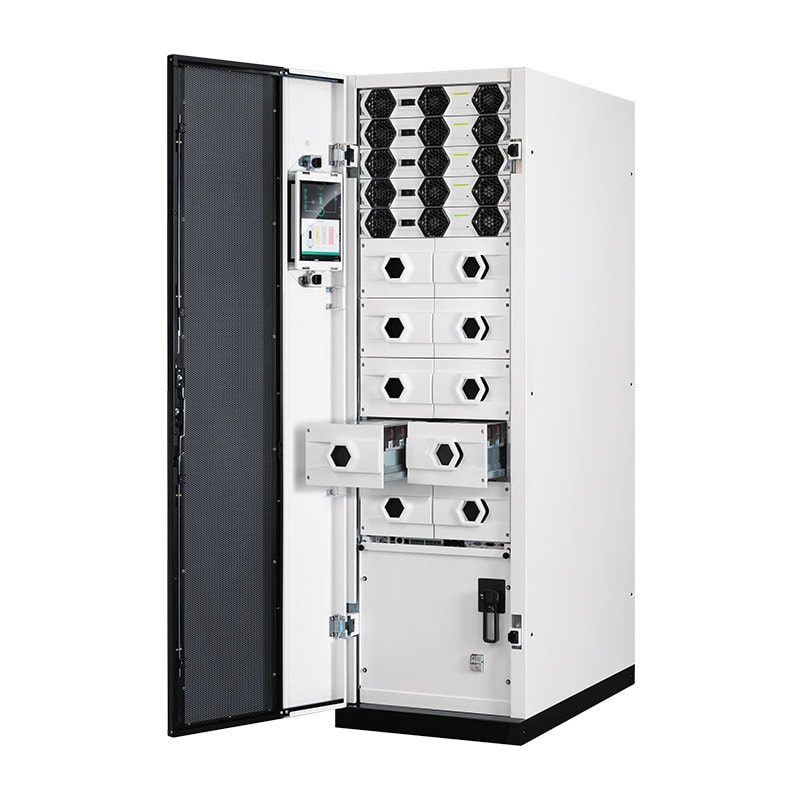

Keor MOD is a three-phase uninterruptible power supply on line double conversion with PWM High-Frequency technology, modular architecture with the possibility to have N+X redundancy.

It delivers a rated power from 25 to 250kW, each unit can be connected in parallel to identical or different units up to 600 kW.

Batteries are lead acid, sealed, maintenance free, valve regulated and arranged inside the UPS up to 125kW.

Keor MOD is the ideal solution for all critical computer applications such as DATA CENTERS.

General features

Just two cabinet configurations (up to 125 kW and up to 250 kW)
Internal Backup time up to 125 KW
UPS system capacity up to 600 kW
Rotating 10" touch screen display
Reduced battery charging times
Double conversion efficiency up to 96.8% (power module efficiency)
Efficiency in ECO mode up to 99%.
Output power factor = 1
Modular redundancy in N+1 configuration

Functions

Controlled noise level
Multicoloured status bar LED
Parallelable system up to 24 power modules
Hot-swappable modules
Decentralised by-pass.
Intelligence distributed between modules

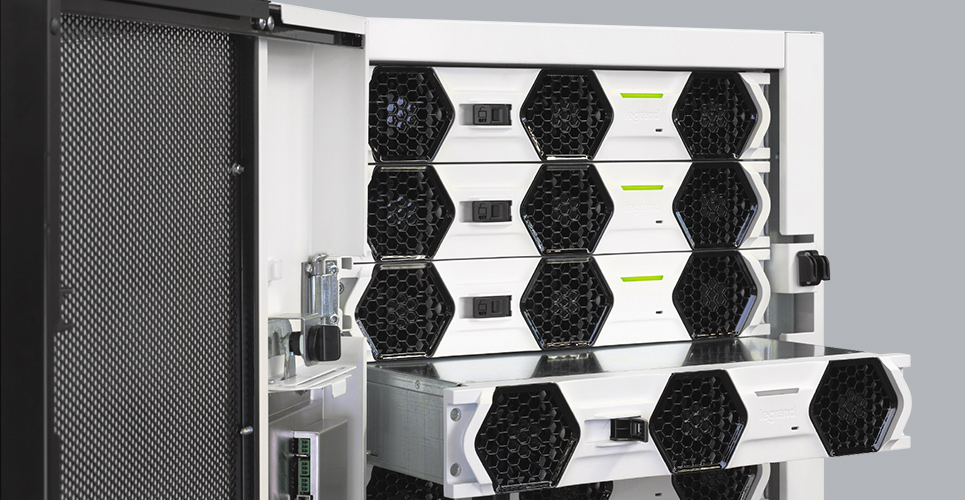

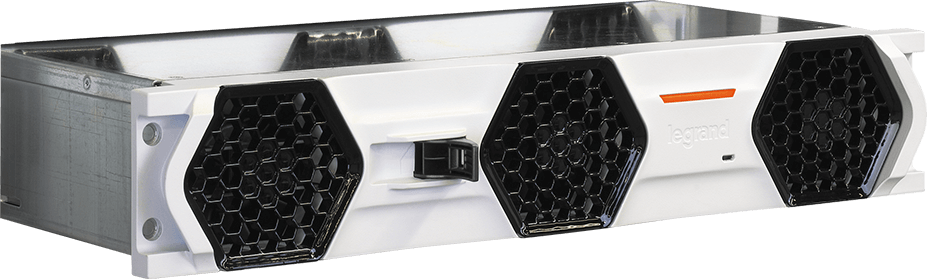

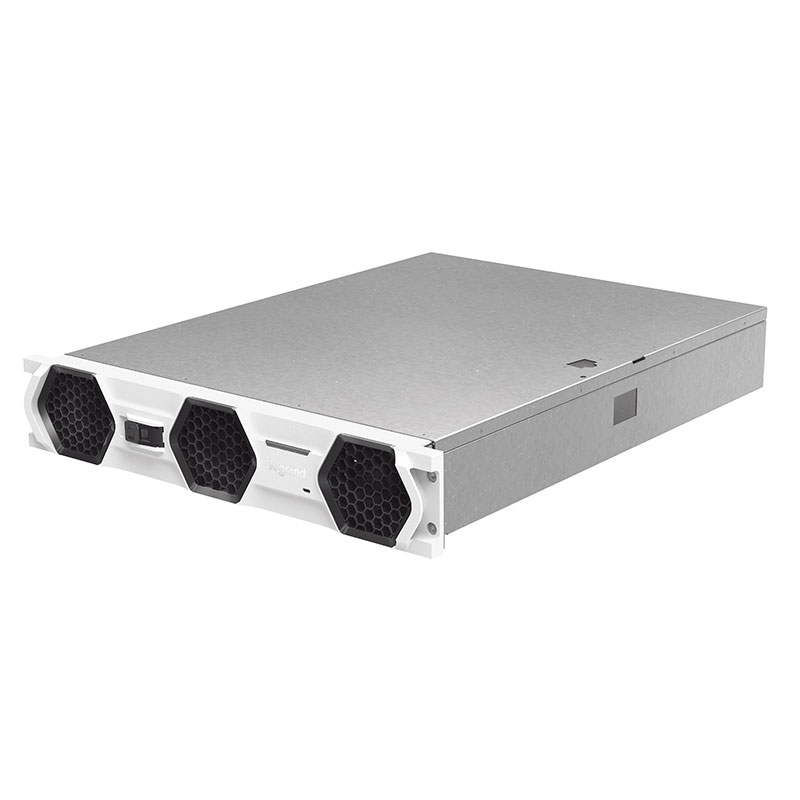

Power module, a collaboration of technology

Each power module is a single complete three-phase UPS with a nominal power of 25 kW in only 2 rack units.
Thanks to the hot swap functions, plug and play and the total independence of each power module, all maintenance phases and any power expansion are extremely swift and simple.

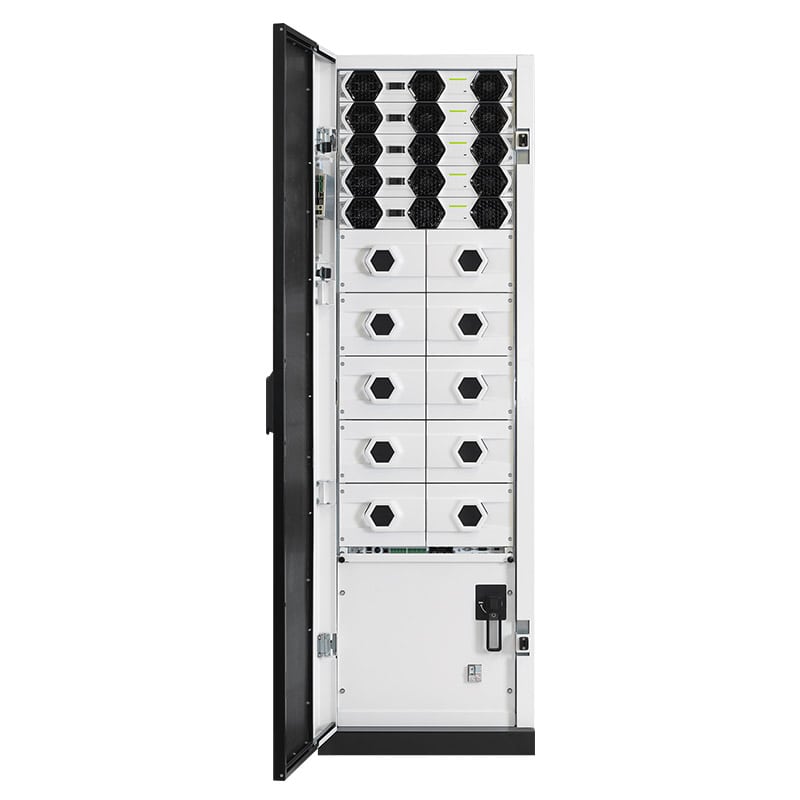

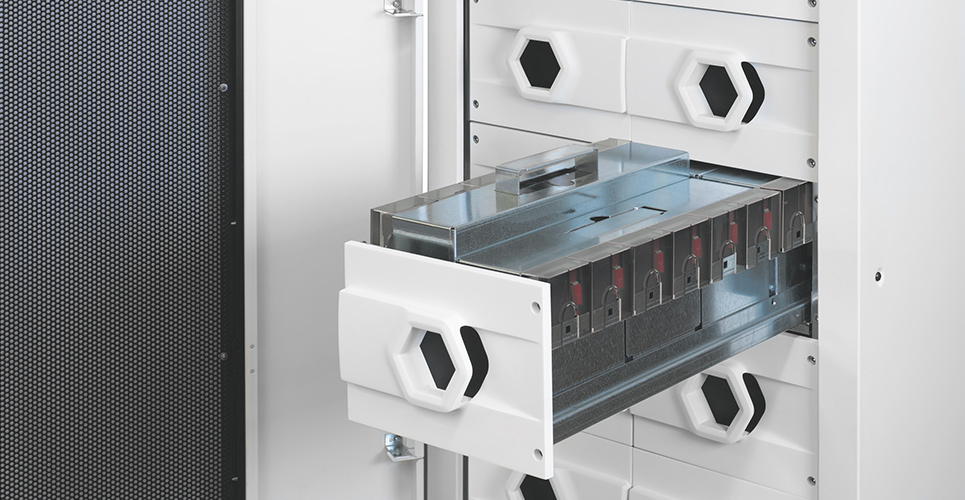

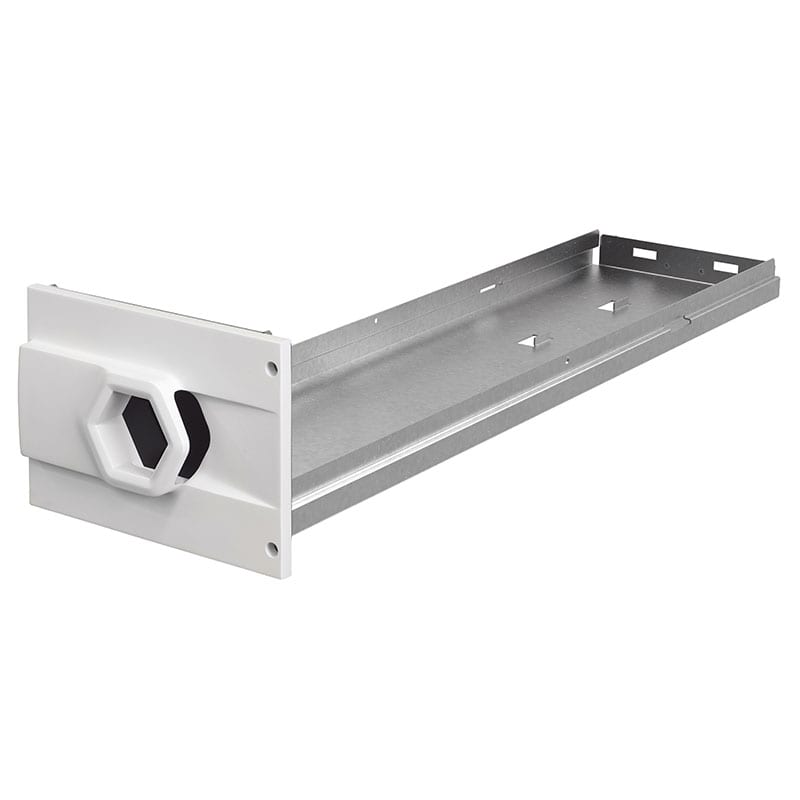

Battery Drawer, Internal Backup time UP TO 125 KW

Each battery drawer contain up to 24- 9 Ah or 11 Ah batteries, allowing the KEOR MOD 125kW model with 10 battery drawers to reach an backup time up to 5 minutes at 100% of the load.

The batteries inside the drawer are divided into 4 blocks, each with 6 batteries, that can be easily removed to guarantee very quick maintenance.

The battery drawers have a plug-in connection and the mechanical anti-extraction stop prevents complete extraction of the drawer.

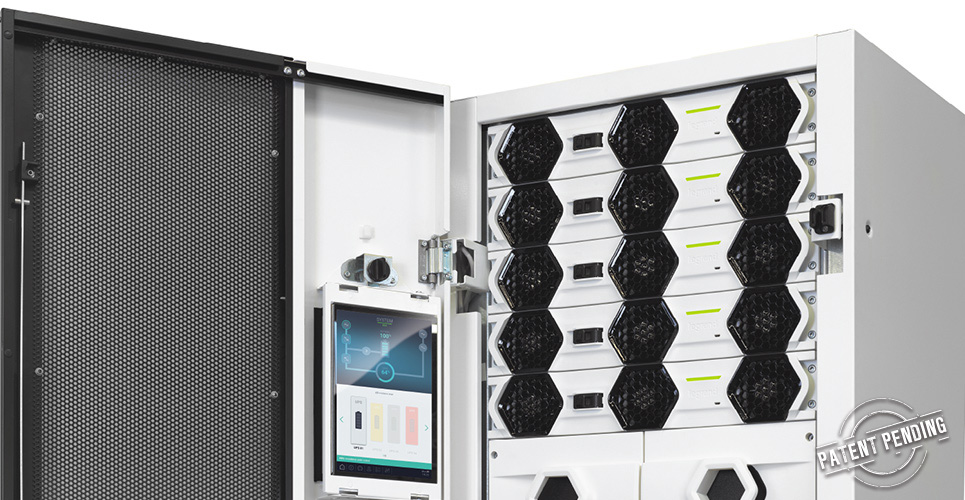

Exclusive rotating touch screen display

The 10” touch screen display provides a simplified control panel packed with information, alerts and settings and is also equipped with interactive icons to make navigation and selection of the functions to be controlled.

The possibility of being able to rotate the Display inwards by 180° simplifies and speeds up the configuration and maintenance phases.

Complete on board communication

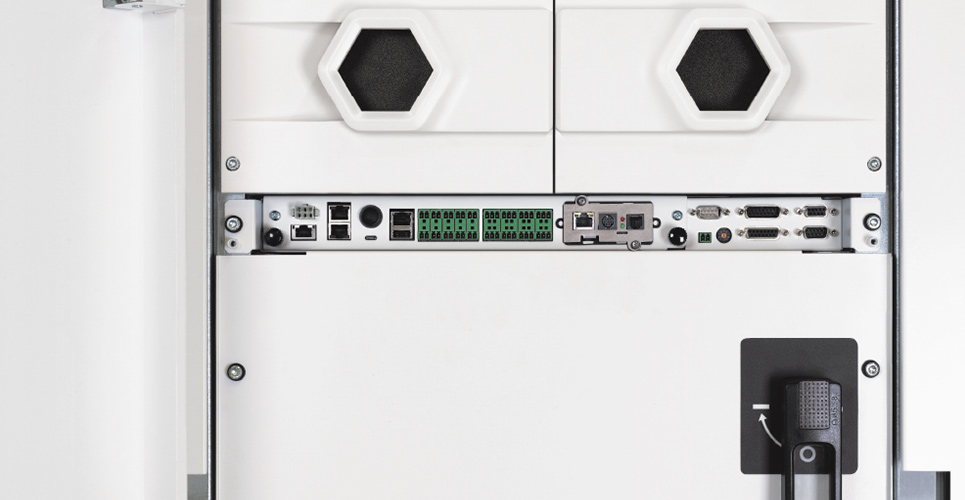

The communication module is positioned on the front, is easily accessible and boasts a wide selection of communication interfaces.

“Cold Start” push-button
system communication ports
RS485 port
RS485 port for external accessories
logical gate
communication interface slot
USB host port
11 floating contact inputs
8 floating contact outputs

IF DESIGN AWARDS 2019

Keor MOD wins this prestigious International recognition, confirming the ability of Legrand to combine technology and design.

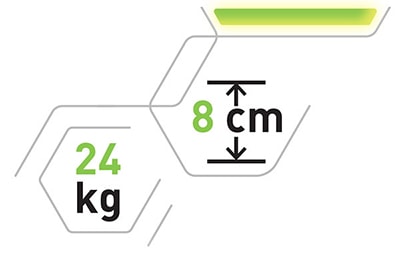

Maximum manoeuvrability

The power module, is extremely compact and integrates two ergonomic handles to facilitate extraction and insertion of the module. Its light weight means it can also be handled by a single person.

Electrical and mechanical safety

A simple and practical "SWITCH" on the front provides the connection and the disconnection both mechanical and electrical, which prevents any incorrect or involuntary removals.

Controlled noise level

The control of the cooling fans is performed independently based on the load and the temperature of the single power stage, hence decreasing energy consumptions and the noise level of the system.

Instant communication

Distinctive element of all the Legrand UPS, Keor MOD also integrates a Led Status Bar (Multicoloured status bar) with traffic light type coding for the immediate display of the actual operating status.

«HOT SWAP» design

Thanks to the hot swap functions, plug and play and the total independence of each power module, all maintenance phases and any power expansion are extremely swift and simple.

KEOR MOD

THREE-PHASE MODULAR UPS
